380kV OHTL
from Jillah BSP #9063 to Layla BSP #9049 — Access Roads & Structure Pads

Overview

Civil support works for the 380kV overhead transmission line corridor linking Jillah Bulk Supply Point (BSP #9063) and Layla Bulk Supply Point (BSP #9049). The package focuses on building safe, all-weather site access and durable structure pads that enable tower foundation and stringing activities under National Contracting Company Ltd. (Transmission & Distribution) supervision.

Scope of work

1. 01

   Construction of access roads and finger roads along the OHTL alignment, including scarification, cut-and-fill earthworks, and embankment formation to design levels.

2. 02

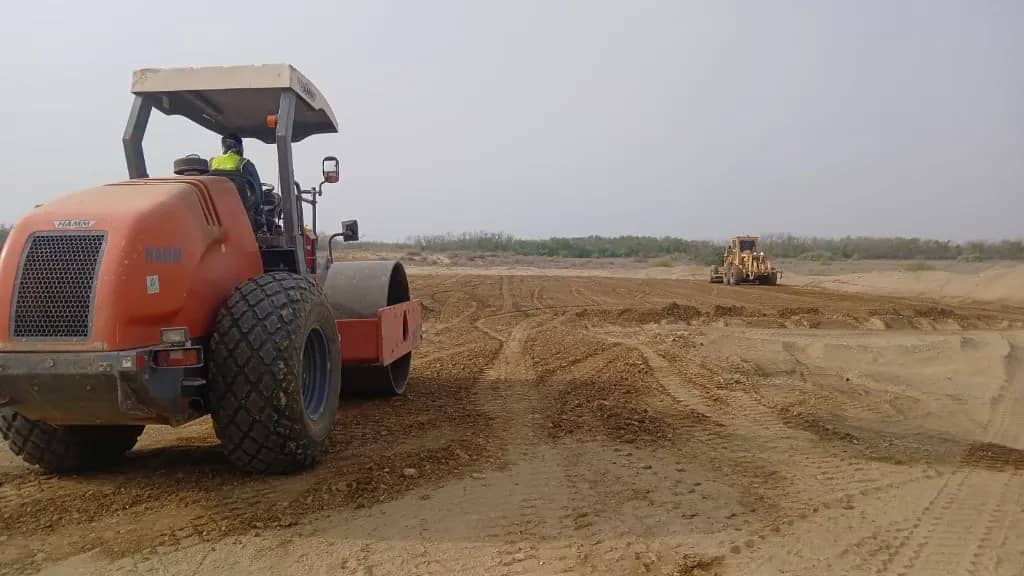

   Road layer works with approved fill / Sub-base A-1A material, multi-lift compaction to 95% MDD, watering, grading, and final surface profiling for construction traffic.

3. 03

   Structure pad construction at tower locations in normal soil, including site preparation, subgrade compaction, sub-base placement, and finished surface course layers ready for foundation crews.

4. 04

   Drainage-aware grading and edge finishing so pads and roads remain trafficable during construction, with spoil management and site housekeeping.

5. 05

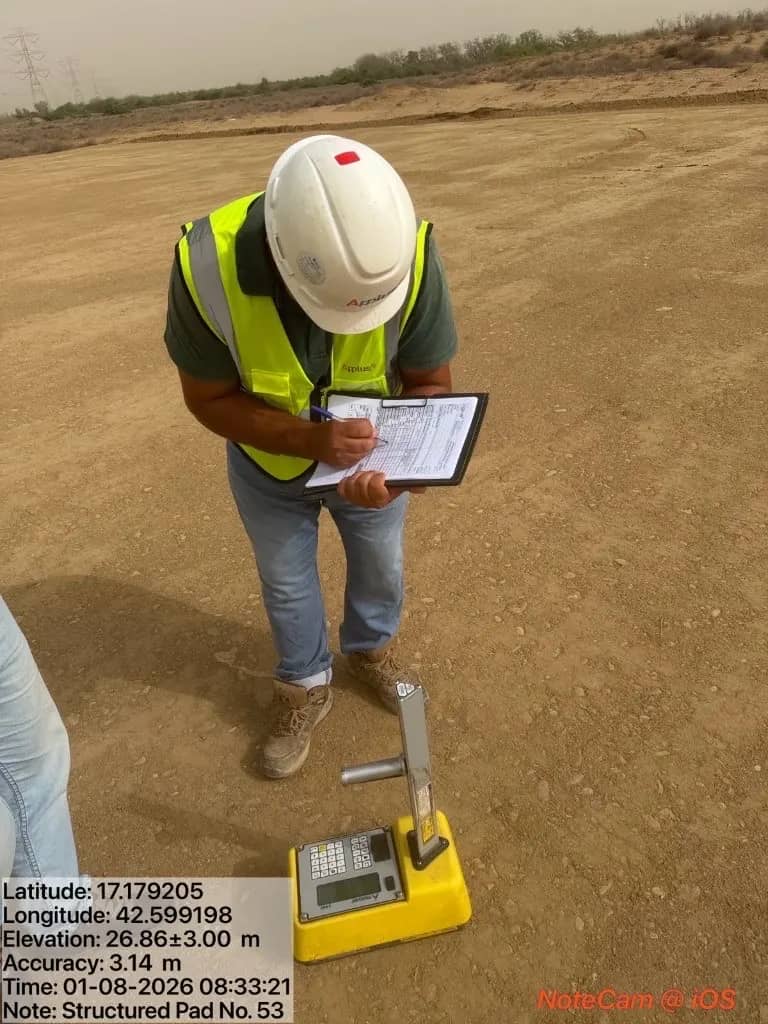

   Survey control, material acceptance, density testing, and joint progressive inspection with the client and SEC-aligned quality requirements.

6. 06

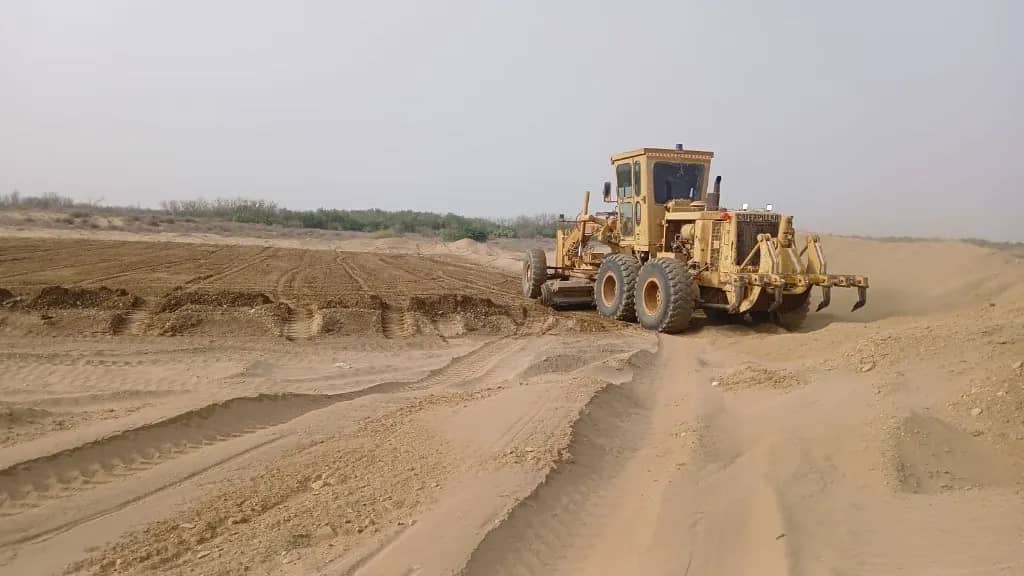

   Equipment-supported execution (graders, rollers, water trucks, and material handling plant) with certified operators and continuous HSE controls along the corridor.

Works follow approved route and civil drawings, NCC / SEC project specifications, QA/QC hold points, and HSE rules for transmission line construction across the Jillah–Layla corridor.
